Chassis & Suspension

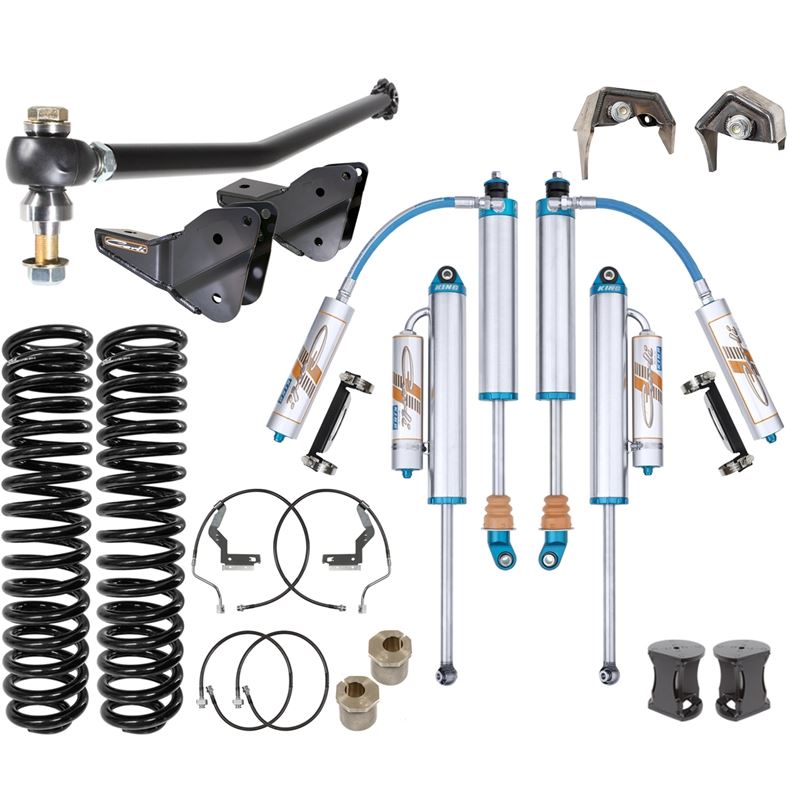

Carli Dominator 3.0 System, 4.5/5.5″ Lift, 2203+ Ford F250/F350, Diesel, 4×4 (CS-F55-D30-23)
$8,219.00
| The Carli Suspension CS-F55-D30-23 5.5″ Dominator System for Ford F-250 and F-350 4×4 diesel models is designed to deliver superior off-road performance while maintaining impressive on-road comfort. This high-performance kit offers a 5.5-inch lift and enough clearance to fit up to 37-inch tires.
This system features Carli’s custom-tuned KING 3.0″ Remote Reservoir Shocks with 17-4 stainless steel shafts for unmatched durability and resistance to wear. Remote reservoirs improve cooling and damping consistency, delivering exceptional performance during extreme off-road use. Multi-rate coil springs are designed to enhance comfort and control on and off-road, while radius arm drops correct suspension angles for improved stability and articulation. The included adjustable track bar with a rebuildable CUB joint keeps the axle centered, enhancing steering precision and handling. High-clearance front bump stop drops, 1° caster shims, and DOT-approved stainless steel brake lines ensure superior suspension travel, stability, and braking performance. Optional upgrades include torsion sway bars or extended links for improved articulation and stability, full progressive leaf springs or add-a-pack kits for rear lift, and fabricated radius arms for additional strength. Built with premium materials and precise engineering, the Dominator System ensures exceptional durability and performance for those who demand the best in off-road capability and everyday drivability. Features & Benefits:
Components Included:
Optional Upgrades – While not required, Carli Suspension offers additional components to further enhance ride quality and / or performance of this leveling system. These can be found by scrolling down the page to the table below. |
| Important Notes1. Fits with diesel engine only 2. Not compatible with the ONBOARD SCALES/SMART HITCH. 3. Modifying the ride height or spring rate will interfere with this system’s performance. 4. Factory Wheels SHOULD NOT be run with oversized tires. They’re known to rub the radius arm, sway bar and most concerning – Brake Lines. 5. Factory tires and factory wheels will work without issue. 6. On Carli’s 4.5” Ford Systems, they recommend 17”-18” wheels, no more than 9” wide with 5” of backspacing with a 37”, E-Rated Tire. The more rubber, the better the small bump compliance will be at proper inflation pressures. The ride will firm up as you go larger in wheel diameter. 7. 3. Note: While this kit can purchased without a rear lift method this system will not achieve a proper rear high stance without the installation of the add-a-pack or progressive leaf springs; it will sit slightly rear low with no rear option added. Add-a-packs only recommended for F250 models. Add-a-Packs are NOT recommended for the F350 (or any F250 equipped with the High Capacity Tow or Tremor Package) |
Vehicle Fitment
| Make | Ford |
|---|---|
| Model | F250, F350 |
| Year Fitment | 2026, 2025, 2024, 2023 |
| 2WD/4WD | 4WD |
Tech Specs
| Manufacturer | Carli Suspension |
|---|---|
| Manufacturer Part Number | CS-F55-D30-23 |
| Item Number | car_cs-f55-d30-23 |
| Product Line | Lift Kits |
| Lift Height | 5.5 inch |
| Engine | Diesel |
