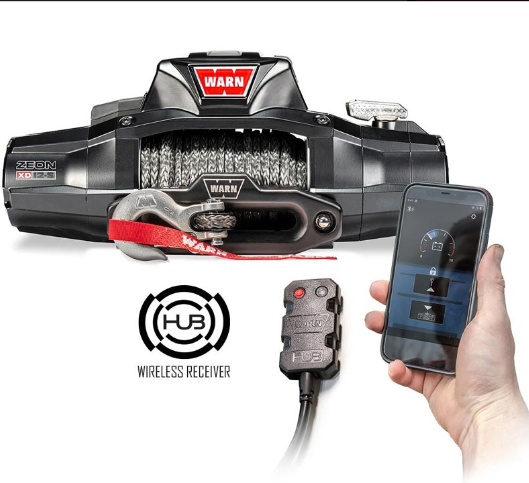

Warn Products ZEON XD 10-S WINCH 110010

The Warn ZEON XD 10-S Winch 110010 has a pull capacity of 10,000 pounds to help you off-road in your truck or SUV. This winch includes 100 feet of 3/8″ Spydura synthetic rope and the HUB receiver for over 100′ range of wireless control, when combined with the WARN HUB app. A recent redesign and retooling from the ground up for ultimate performance and durability, this winch is there when you need it, in any environmental conditions. And with the industry’s fastest line speed and most thorough waterproof sealing, ZEON XD is an ultra-reliable recovery tool you can count on when you need it most.

Features:

• Engineered, Tested, & Assembled In Clackamas, Oregon, USA
• Full Metal Armor Protects Components From Impact & Damage
• Reliable Waterproof Construction Features O-Ring Rubber Sealing
• The Entire Winch Is IP68K Submersion & IP69K High Pressure Spray Rated
• Albright Contactor Control & Bus Bars For The Ultimate In Electrical Reliability & Efficiency
• WARN Spydura Synthetic Rope Is Strong, Lightweight, Easy-To-Handle, With Heat-Resistant Inner Wraps & Abrasion Sleeve
• Upgraded, Corrosion-Resistant Black Fasteners & New, UV-Resistant Bus Bar Covers Meet The Highest OEM-Grade Specifications.
• New High-Performance, High-Efficiency Motor & Geartrain Delivers Blazing Fast No-Load Line Speeds Of Up To 40 Ft/Min – The Fastest In Its Class.
• Includes A Durable Waterproof Corded Remote With 12′ Lead, & The HUB Receiver For 100’+ Range Of Wireless Control, When Paired With The WARN HUB App
• Upgraded Black Aluminum Fairlead Is Made Of Forged 6061-T6 Billet Aluminum, Giving Superior Corrosion, Impact, Salt, Weather, & UV-Resistance For Long-Lasting Good Looks

Specifications:
Battery Leads: 2 Gauge, 72″ (1.83m)
Brake: Automatic, Six Segment Mechanical Cone
Clutch (Freespooling): Rotating Ring Gear With Stainless Steel Clutch Lever. Manual Lever Operation.
Corrosion Resistance: 408 Hour Salt Spray
Drum Diameter/Length: 3.15″/9.0″ (80mm/229mm)
Electrical Controls: Contactor
Fairlead: Black Anodized, Forged Aluminum Hawse
Final Point Of Assembly: Warn Facility In Clackamas, Oregon, USA
Gear Ratio: 141:1
Geartrain: 3-Stage Planetary
Ingress Protection: P68 Submersion And IP69K Spray Testing (Entire Unit)
Motor: 12V DC, Series Wound (Exclusive WARN High-Performance Design)
No Load Line Speed: 40 Ft/Min (12.19m/Min)
No Load Motor Current: 64 Amps
Rated Line Pull (Single Line): 10,000lbs (4536 Kg)
Rated Load Line Speed: 5 Ft/Min (1.52m/Min)
Rated Load Motor Current: 458 Amps
Recommended Battery: 650 CCA Minimum For Winching
Remote Control Corded Remote With 12′ (3.7m) Lead, Plus HUB Wireless Receiver
Rope: 3/8″ X 100′ (9.52mm X 30m) Spydura Synthetic
Weight: 85lbs (In Box)
Wiring: Automotive OE-Grade Buss Bars
Zeon Finish: Satin-Black Powder Coat
