14-18 RAM 2500 4X4 DIESEL 2.5″ LIFT LEVELING PATHFINDER SYSTEM

The Carli Pathfinder Suspension System (CS-DLVL-PF-14-D) for the 2014 thru 2018 Dodge Ram 2500 is engineered for Ram owners who prioritize exceptional on-road comfort while retaining the capability to handle light to moderate off-road use. Positioned between Carli’s Backcountry and Pintop systems, the Pathfinder delivers a controlled, predictable ride that excels in daily driving without sacrificing durability or trail confidence.

At the core of the system are Carli-SPEC 2.5-inch aluminum-bodied shocks, finished with a hard-anodized coating for superior corrosion and scratch resistance. With 55% more piston surface area than 2.0-inch shocks, these dampers offer improved heat dissipation, consistent damping, and extended service intervals. Internally, high-performance shock oil resists heat and fade, ensuring smooth, reliable performance even under spirited driving conditions.

The Pathfinder system stands out on pavement, absorbing small and medium road imperfections with ease and delivering a supple, composed ride that doesn’t require aggressive driving to appreciate. Off-road, it remains confident and capable for light to moderate terrain, making it an ideal choice for drivers who want premium ride quality first—with dependable off-road performance as a bonus.

An adjustable front track bar is included to properly recenter the axle at the increased ride height, while Carli reservoir mounts position the 10-inch remote reservoirs cleanly over the front tires. Additional ride quality improvements can be achieved with optional Carli upgrades, such as the Torsion Sway Bar and Low-Mount Steering Stabilizer.

Features & Benefits

• 2.5-inch front lift / 0-inch rear lift
• Fits 2014-2018 Ram 2500 4WD Diesel models
• On-road focused suspension with light to moderate off-road capability
• Carli-SPEC 2.5” aluminum-bodied shocks
• Front Travel = 8.5″ / Rear Travel = 9.1″
• Hard-anodized shock bodies for corrosion and wear resistance
• Allows use of up to 35-inch x 12.5 tires
• 55% more piston surface area than 2.0” shocks for improved heat control
• High-performance shock oil resists fade and maintains consistent damping
• Adjustable front track bar – keeps the front axle centered and dampens vibrations. Uses FK heim joint with huge 1″ shank
• Remote reservoir mounts position 10” reservoirs cleanly in the wheel well
• Premium black-anodized billet components for a clean, high-end appearance
• Ideal for daily-driven trucks that demand comfort and control
• Made in the USA

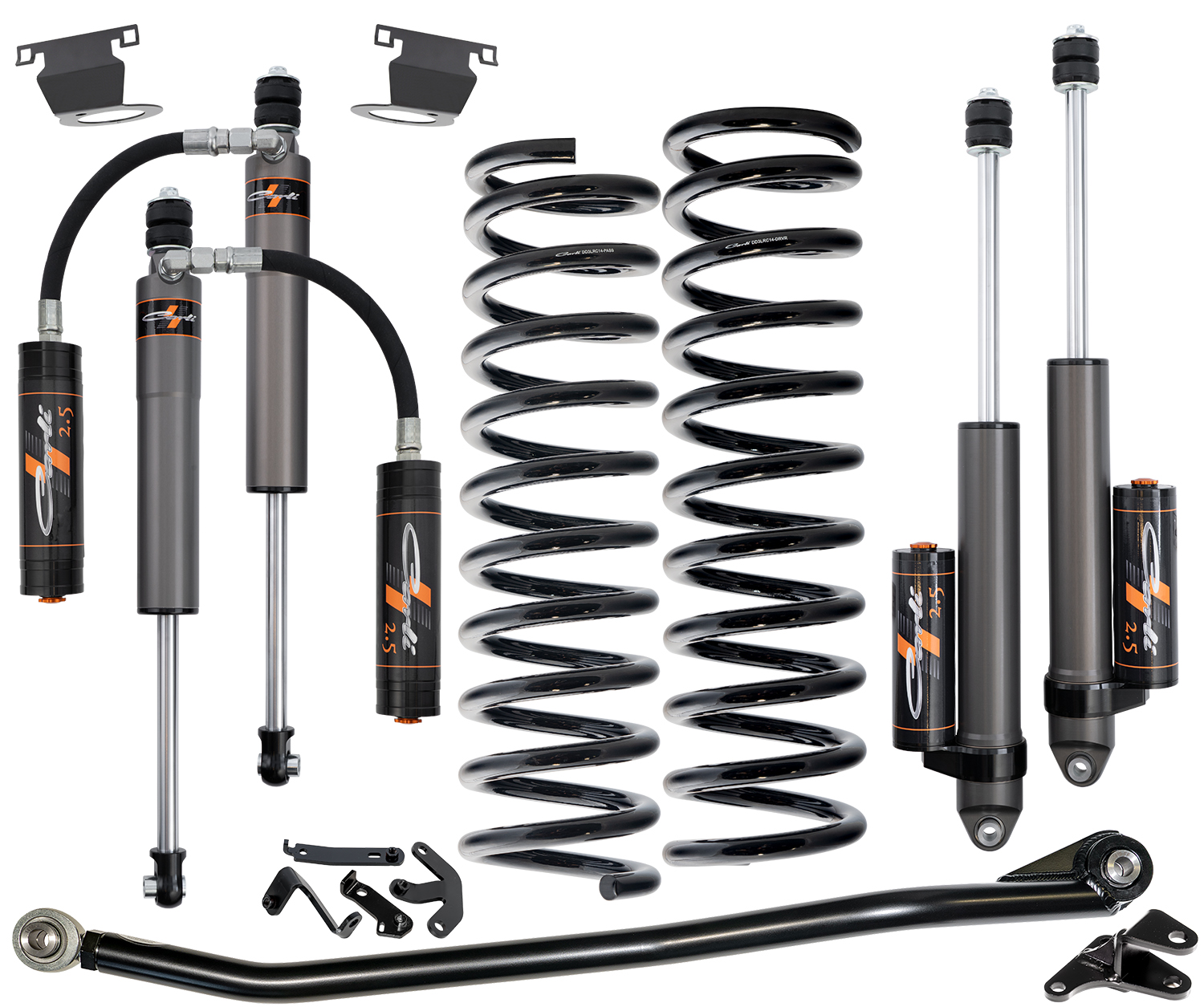

Components Included:

• CS-DLRC-14-LVL-D: Front Coil Springs

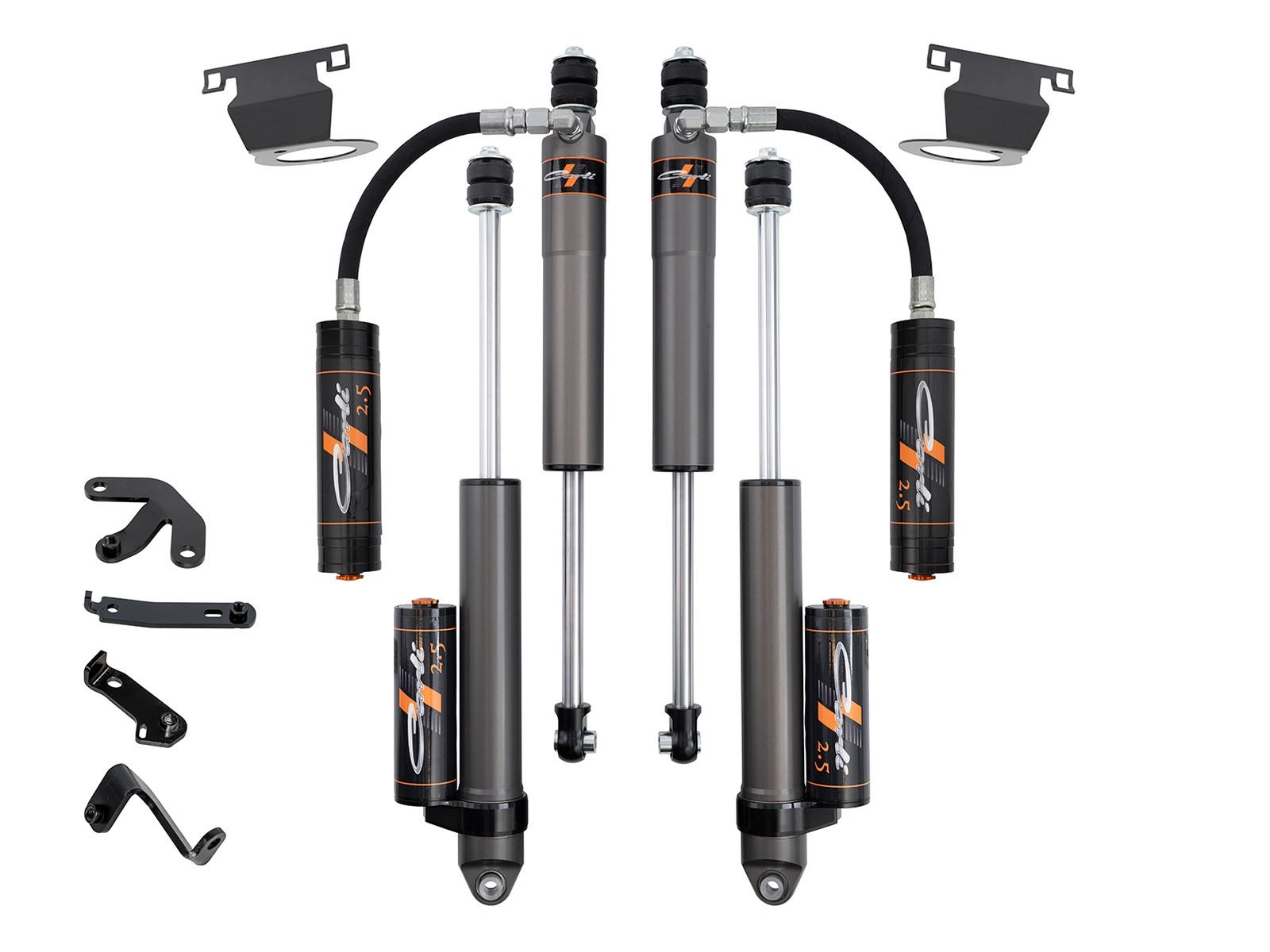

• CS-DLVLSPKG-CS25RR-A: Carli SPEC 2.5 Remote Resi Front & Rear Shocks, with Resi Mounts and E-Brake Relocation Brackets
• CS-DATB-1419: Adjustable Track Bar
